Place of Origin :
JIANGSU, CHINA
Brand Name :
TONGDA
Packaging Details :
PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
Supply Ability :
800sets/year
Price :
$39,999.00/Sets >=1 Sets
Certification :
CE, ISO9001
MOQ :
1SET
Delivery Time :
28 working days
Payment Terms :
T/T, L/C, D/P, West Union
Model Number :
TONGDA HTll2L
Core Components :
PLC, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Application :
Bottle
Plastic Processed :
PP, HDPE, PC, ABS, PVC, PE, EVA, ABS/PP, PE/PP, HDPE/PP
Voltage :
380V,50HZ,3PHASE
Dimension(L*W*H) :
2.78*1.55*2.35
Hollow part volume :
2L
Clamping Force (kN) :
44
PLC Brand :
MITSUBISHI
Screw L/D Ratio :
25
Screw diameter (mm) :
50 mm
Output (kg/h) :
50 kg/h
Automation :
Automatic
No. of Screw Heating Zone :
3
Screw Heating Power(kW) :
6.8 kW
Extruder Motor Power(kW) :
11 kW
Mold Platen Size(Width)(mm) :
310 mm
Mold Platen Size(Height)(mm) :
320 mm
Air Pressure(MPa) :
0.6 MPa
Air Comsumption(m³/min) :
0.4 m³/min
Die Head Heating Power(kW) :
7 kW
Accumulator Capacity(L) :
0 L
Power (kW) :
30.5
Weight (T) :
3.3
Key Selling Points :
Easy to Operate
Warranty :
1 Year
Applicable Industries :
Manufacturing Plant, Food & Beverage Factory
Showroom Location :
Egypt, Indonesia, Pakistan, Thailand, Chile, Algeria
High Pressure Valve Brand :
AirTac
Rotary Cylinder Brand :
FESTO

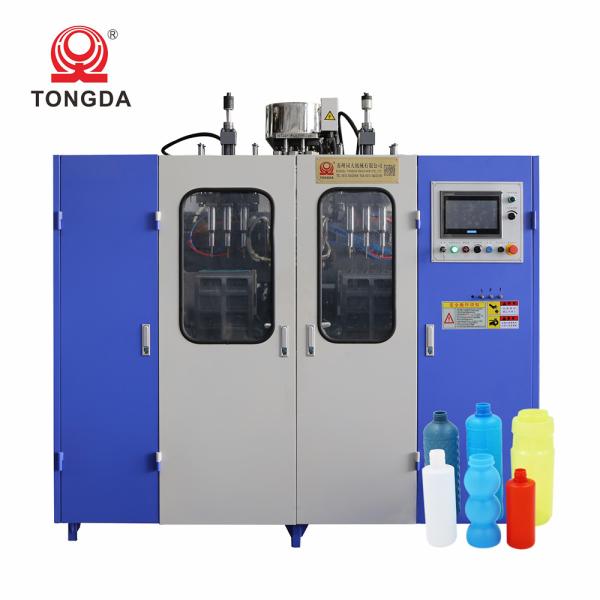

Product name :
Extrusion Blow Molding Machine
Key words :
Automatic Extrusion Blow Moulding Machine
Color :
Blue
Material :
HDPE LDPE LLDPE
Type :
Extrusion Blow Molding Equipment
Capacity :
200 Pcs/hr
Use :
Making Bottle
Shipping :
Sea
Port :
Shanghai port
