Place of Origin : JIANGSU, CHINA
Brand Name : TONGDA
Packaging Details : PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
Supply Ability : 800sets/year
Price : $39,999.00 - $54,999.00/Sets
Certification : CE, ISO9001
MOQ : 1SET
Delivery Time : 28 working days
Payment Terms : T/T, L/C, D/P, West Union
Model Number : TONGDA HTSII5L
Condition : New
Video outgoing-inspection : Provided
Machinery Test Report : Provided
Marketing Type : New Product 2020
Warranty of core components : 1 Year
Core Components : PLC, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Application : Bottle
Plastic Processed : PP, HDPE, PC, ABS, PVC, PE, EVA, PA, ABS/PP, PE/PP, HDPE/PP, PETG
Year : 2020
Voltage : Customized to customer needs
Dimension(L*W*H) : 3.2m*2.12m*2.55m
Hollow part volume : 1-5L
Clamping Force (kN) : 110
PLC Brand : MITSUBISHI
Screw L/D Ratio : 25
Screw diameter (mm) : 80 mm
Output (kg/h) : 110 kg/h
Automation : Automatic
No. of Screw Heating Zone : 4
Screw Heating Power(kW) : 19 kW
Extruder Motor Power(kW) : 30 kW
Mold Platen Size(Width)(mm) : 440 mm
Mold Platen Size(Height)(mm) : 420 mm
Air Pressure(MPa) : 0.6 MPa
Air Comsumption(m³/min) : 0.4 m³/min
Die Head Heating Power(kW) : 10.7 kW
Accumulator Capacity(L) : 0 L
Power (kW) : 57.8
Weight (T) : 8
Key Selling Points : Long Service Life
Warranty : 1 Year
Applicable Industries : Energy & Mining, Hotels, Home Use, Machinery Repair Shops, Restaurant, Food & Beverage Factory, Farms
Showroom Location : Egypt, Indonesia, Pakistan, Thailand, Chile, Algeria
Rotary Cylinder Brand : FESTO
Station : Double Station
Suitable bottle : 1-5L
Key words : Automatic Extrusion Blow Moulding Machine
Packing : Wooden
Use : Hollow Moulding
Parison Control : MOOG
Max. Size of Mold : 440*420
Hydraulic valve : Yuken
Color : White
Port : shanghai
This HTS series machine is our most cost effective series machine. It is suitable for producing HDPE bottles size below 5 liters. If equipped with multi head die-heads, it also suitable for producing small plastic bottles blow molding.
The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements,we can provide customized services for you.
MODEL | Units | HTSll-5L | Remarks: we will customize the most suitable machinery according to your requirements |
Max. Product volume | L | 5 | |
Output of HDPE | kg/h | 110 | |
Clamping force | kn | 110 | |
Screw diametre | mm | 80 | |
Screw heating power | kw | 19 | |
Blow pressure | mpa | 0.6 | |
Size of machine | m | 4.1*2.6*2.7 | |
Multi-head die head confituration available for different output requirement, from 1 cavity to 8 cavity, we all can supply.
Parison controller we use MOOG 200 Points or AUTOMATA 300 Points, with extremely sensitive action.
Touch screen we use large size INNOVANCE
1. We have office in Poland, Peru, Chile, Russia, Egypt, Jordan, Thailand, Indonesia, Algeria, Ethiopia, Poland, etc
2. We have benchmark customers in America, Saudi Arabia, Jordan, Qatar, Thailand, Indonesia, etc.
3. Our company has exported over 4000 units machine to more than 120 countries and regions, such as USA, UK, Australia, Greece,Poland.Russia,Belarus,South America, South Africa,Indonesia, Egypt, Syria, Ethiopia.We are not only providing our customers with high quality products, but also provide high quality service Which will be rapidly and timely sent to every customer.
Advantages of TONGDA tech teams
1. 800 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.
Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.
![]() |

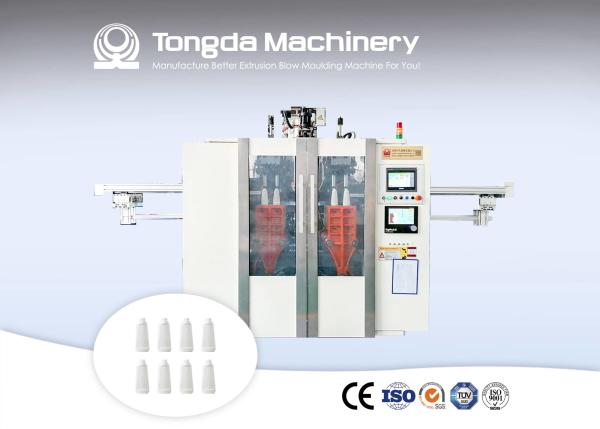

Kettle Fully Automatic Bottle Blowing Machine Plastic Water Pot Making Machine Images |
