25L HDPE Drum Blow Molding Machine Double Station Fully Automatic

Suzhou Tongda Machinery Co., Ltd.
Contact Now

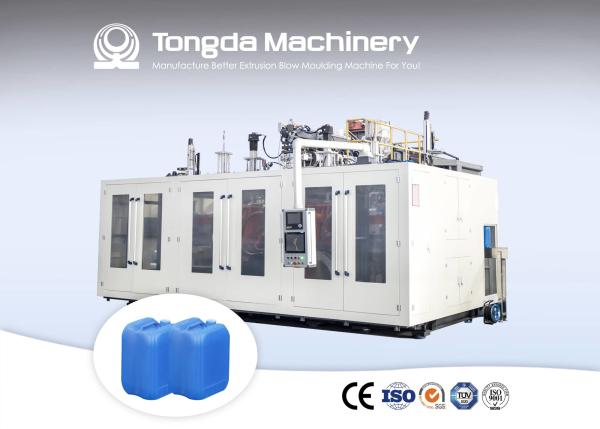

25L HDPE Drum Blow Molding Machine Double Station Fully Automatic

Place of Origin : JIANGSU, CHINA

Brand Name : TONGDA

Packaging Details : PE film, PE bag, Wooden Cases, Wooden Pallet, etc.

Supply Ability : 800sets/year

Price : $129,999.00 - $149,999.00/Sets

Certification : CE, ISO9001

MOQ : 1SET

Delivery Time : 28 working days

Payment Terms : T/T, L/C, D/P, West Union

Model Number : HSII-30L

Hollow part volume : 1-30L

Clamping Force : 250KN

Screw diameter (mm) : 100 mm

Output : 300 kg/h

Mold Platen Size(Width)(mm) : 740 mm

Mold Platen Size(Height)(mm) : 650 mm

Air Pressure(MPa) : 0.6 MPa

Air Comsumption(m³/min) : 1.2 m³/min

Contact Now

TONGDA HSll30L Double Station Fully Automatic 20L Jerry Can HDPE 25L Chemical Drum Blow Molding Machine

Product Description

This HSII-30L model machine belongs to our best series extrusion blow molding machine.

Suitable for the production of 20L~30L stacking jerry can, PP 5 gallon water bottles, etc.

Continuous type die head, with shorter cycle time.

Technical Parameters
MODEL
Units
HSII-30L
Remarks: The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements,we can provide customized services for you.
Max. Product volume
L
30
Output of HDPE
kg/h
300
Clamping force
kn
250
Screw diametre
mm
100
Screw heating power
kw
26
Blow pressure
mpa
0.6
Size of machine
m
6.2x5.5x3.3

Product Details

Servo Valve:

High Speed, high precision, energy-efficient, advanced servo system

Optional 3D Manipulator

Reduce manual sorting costs and improve productino efficiency

Hydraulic Servo:Energy saving and high precision

Electric gauge:Fast speed and high precision

Company Information

Suzhou Tongda Machinery Co., Ltd. is located in Zhangjiagang City, Fenghuang town Korea Industrial Park. 2 hours away from Shanghai City by car. We have more than 23 years experience always specialized in R&D and manufacturing of extrusion blow molding machine.

Now we have more than 50 R & D personnel, including 1 national science and technology talent, 4 senior masters,15 bachelors, hosting the development of two national standards and participating in the formulation of a national standard.

Service Network

25L HDPE Drum Blow Molding Machine Double Station Fully Automatic

We have Benchmark customers in USA-Poland-Chile-Peru-Russia-Saudi Arab-Qatar-Jordan-Iran-Egypt-Algeria-Ethiopia, etc.

After-sales services

During epidemic period, our team have helped customers start up more than 250sets new Tongda machines by online service, to help customer run the machine as soon, our after sales team helped around 02:00am till the mid-night.

FAQ

TONGDA sales consultant

1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function

Advantages of TONGDA after-sales team

1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.


Product Tags:

25L Drum Blow Molding Machine



Fully Automatic Drum Blow Molding Machine



HDPE Double Station Blow Moulding Machine


Quality 25L HDPE Drum Blow Molding Machine Double Station Fully Automatic wholesale

25L HDPE Drum Blow Molding Machine Double Station Fully Automatic Images
