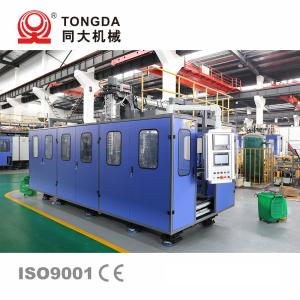

Open Top 30L Plastic Bucket Manufacturing Machine 230 Kg/H Double Station

Place of Origin : JIANGSU, CHINA

Brand Name : TONGDA

Packaging Details : PE film, PE bag, Wooden Cases, Wooden Pallet, etc.

Supply Ability : 800sets/year

Price : $79,999.00 - $94,999.00/Sets

Certification : CE, ISO9001

MOQ : 1SET

Delivery Time : 28 working days

Payment Terms : T/T, L/C, D/P, West Union

Model Number : TONGDA HTll30L

Dimension(L*W*H) : 6.3m*3.4m*3.9m

Hollow part volume : 1-30L

Clamping Force (kN) : 250

Screw L/D Ratio : 28

Output (kg/h) : 230 kg/h

Air Pressure(MPa) : 0.6 MPa

Power (kW) : 141

Warranty : 1 Year

Contact Now

TONGDA HTll30L Open Top Plastic bucket chemical plastic drum making machine

HTll-30L

This is double station.This is suitable for making the 20L~30Lstacking product.The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements, we can provide customized services for you.

Technical paratmers

MODEL
Units
HTll-30L
Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume
L
30
Output of HDPE
kg/h
230
Clamping force
kn
250
Screw diametre
mm
100
Screw heating power
kw
26
Blow pressure
mpa
0.6
Size of machine
m
6.3*3.4*3.9

Product Description

Open Top 30L Plastic Bucket Manufacturing Machine 230 Kg/H Double Station

Product Details

Open Top 30L Plastic Bucket Manufacturing Machine 230 Kg/H Double Station

Standard air valve, with stable function

Open Top 30L Plastic Bucket Manufacturing Machine 230 Kg/H Double Station

Energy accumulator, protect wall thickness controller when suddenly power shut off.

Open Top 30L Plastic Bucket Manufacturing Machine 230 Kg/H Double Station

Automatic lubrication system, ensure the machine works more smoothly and the service life of parts longer

Company Information

Open Top 30L Plastic Bucket Manufacturing Machine 230 Kg/H Double Station
Open Top 30L Plastic Bucket Manufacturing Machine 230 Kg/H Double Station
Open Top 30L Plastic Bucket Manufacturing Machine 230 Kg/H Double Station
Open Top 30L Plastic Bucket Manufacturing Machine 230 Kg/H Double Station

Suzhou Tongda Machinery Co., Ltd has established Engineering Technology Research and Development Center, and Jiangsu Province excellent Graduate work station. Jiangsu Enterprise Research and Development Center, Jiangsu Province Extrusion blow Molding Technology Technology Center, Jiangsu Province post-doctoral innovation practice base and other R & D platforms. That means constantly exploring the expansion of new areas.

Service Network

Open Top 30L Plastic Bucket Manufacturing Machine 230 Kg/H Double Station
Under normal conditions,the blow molding machine to abroad will be packaged in wooden case. ln addition,we will also pack the machine according to the requirements of specific customers.Subject to the measurement of main blower,we will choose corresponding wooden case, TONGDA is a professional mould machinery company we will try our best to satisfy the kinds of demand of customers.
Open Top 30L Plastic Bucket Manufacturing Machine 230 Kg/H Double Station
Service Marketing Network
1.Over four thousand Tongda machines have been serving customers all over the world.
2.The company has service outlets in Russia, Egypt, Jordan, Thailand, Chile, Indonesia and Algeria.
3.our company has exported over 4000 units machine to more than 89 countries and regions, such as USA, UK, Australia, Greece,Poland.Russia,Belarus,South America, South Africa,Indonesia, Egypt, Syria, Ethiopia.We are not only providing our customers with high quality products, but also provide high quality service Which will be rapidly and timely sent to every customer.
Open Top 30L Plastic Bucket Manufacturing Machine 230 Kg/H Double Station
Our Machinery has been keeping good cooperative relationship with customers since our establishing.
The satisfaction of our customers are the pursuit of every member of Tongda,The only way we service in the competitive market is to help our customers to full fill their requirement.

FAQ

TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function


Q: how big is your company?
A: our company has 270 employees and A building area of 53,330 square meters. We own land and factories.The company has a registered capital of us $2 million and a long-term business license since 1998.

Q: how long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
