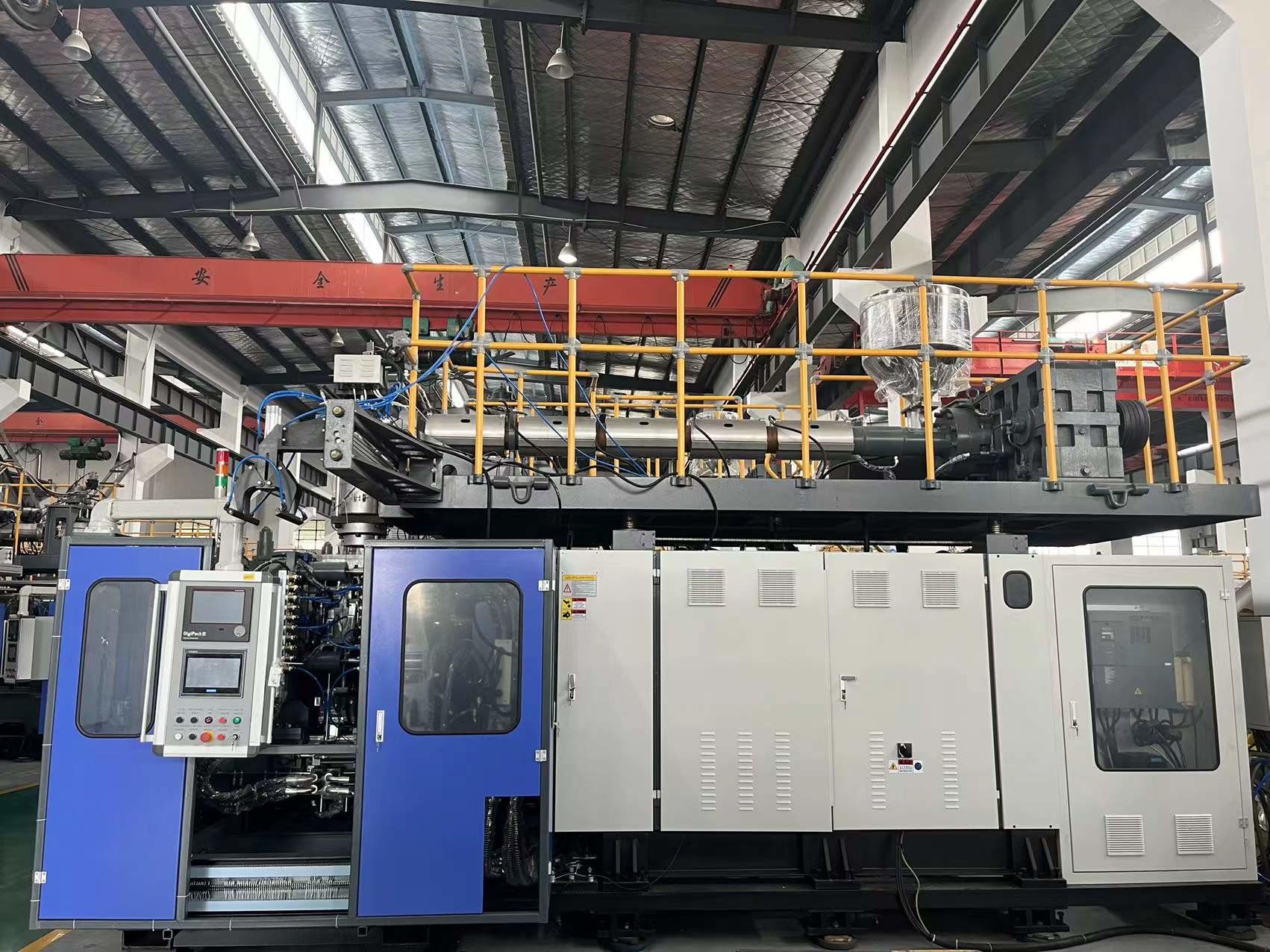

Full Automatic Jerry Can Blow Molding Machine 10 Liter Double Station

Place of Origin : JIANGSU, CHINA

Brand Name : TONGDA

Packaging Details : PE film, PE bag, Wooden Cases, Wooden Pallet, etc.

Supply Ability : 800sets/year

Price : $49,999.00 - $64,999.00/Sets

Certification : CE, ISO9001

MOQ : 1SET

Delivery Time : 28 working days

Payment Terms : T/T, L/C, D/P, West Union

Model Number : HTll12L

Hollow part volume : 1-12L

Clamping Force (kN) : 110

Screw L/D Ratio : 25

Output (kg/h) : 130 kg/h

No. of Screw Heating Zone : 4

Screw Heating Power(kW) : 15.6 kW

Weight (T) : 10

Contact Now

TONGDA HTll12L Double station Fully automatic 10 liter jerry cans blow moulding machine

Product Description

This is our basic series machine.It is double station.This machine is suitable for the stacking product,jerry can.It can be equipped with several die-heads and then it is also suitable for small product.The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements, we can provide customized services for you.

Technical Parameters

MODEL
Units
HTll-12L
Click for the latest discount details
Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume
L
12
Output of HDPE
kg/h
85
Clamping force
kn
110
Screw diametre
mm
70
Screw heating power
kw
13.2
Blow pressure
mpa
0.6
Size of machine
m
3.9*2.1*2.8
Full Automatic Jerry Can Blow Molding Machine 10 Liter Double Station

Product Details

Full Automatic Jerry Can Blow Molding Machine 10 Liter Double Station

Price advange to produce round bottle ,no non deflashing product

Full Automatic Jerry Can Blow Molding Machine 10 Liter Double Station

With the automatic lubrication system, the machine works more smoothly and the service life of parts is longer

Full Automatic Jerry Can Blow Molding Machine 10 Liter Double Station

Large touch screen, equipped with Japanese moog 100 poinst Parison control, simpler operation and more perfect products

Company Information

Full Automatic Jerry Can Blow Molding Machine 10 Liter Double Station

Suzhou Tongda Machinery Co., Ltd has established Engineering Technology Research and Development Center, and Jiangsu Province excellent Graduate work station. Jiangsu Enterprise Research and Development Center, Jiangsu Province Extrusion blow Molding Technology Technology Center, Jiangsu Province post-doctoral innovation practice base and other R & D platforms. That means constantly exploring the expansion of new areas.

Under normal conditions,the blow molding machine to abroad will be packaged in wooden case. ln addition,we will also pack the machine according to the requirements of specific customers.Subject to the measurement of main blower,we will choose corresponding wooden case, TONGDA is a professional mould machinery company we will try our best to satisfy the kinds of demand of customers.

Service Network

Service Marketing Network
1.Over four thousand Tongda machines have been serving customers all over the world.
2.The company has service outlets in Russia, Egypt, Jordan, Thailand, Chile, Indonesia and Algeria.
3.our company has exported over 4000 units machine to more than 89 countries and regions, such as USA, UK, Australia, Greece,Poland.Russia,Belarus,South America, South Africa,Indonesia, Egypt, Syria, Ethiopia.We are not only providing our customers with high quality products, but also provide high quality service Which will be rapidly and timely sent to every customer.
Full Automatic Jerry Can Blow Molding Machine 10 Liter Double Station
Our Machinery has been keeping good cooperative relationship with customers since our establishing.
The satisfaction of our customers are the pursuit of every member of Tongda,The only way we service in the competitive market is to help our customers to full fill their requirement.

FAQ

TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function

Advantages of TONGDA tech teams
1. 600 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.

Q: how long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
